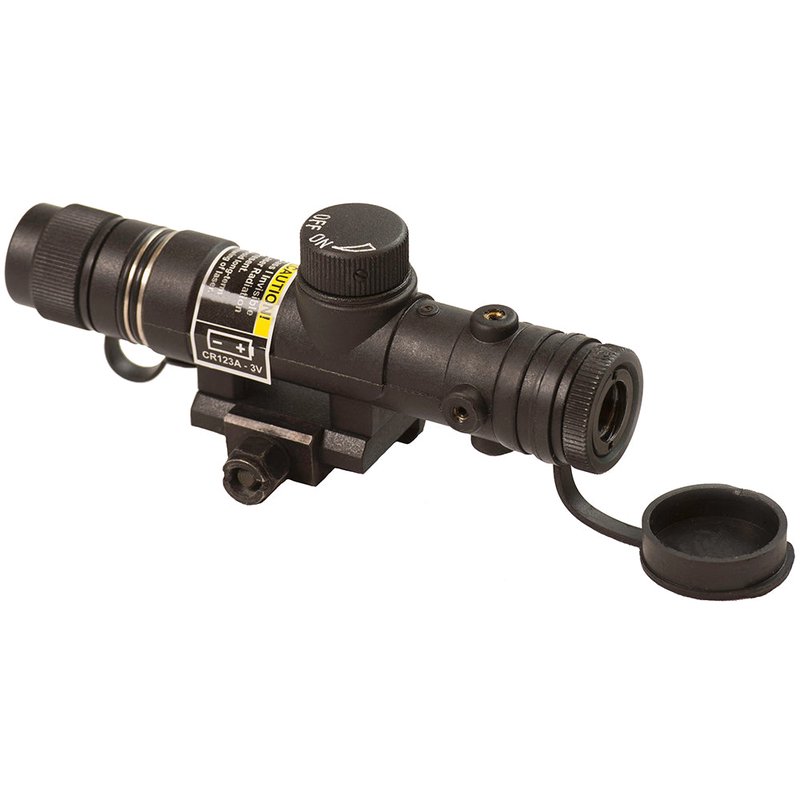

Luna Optics LN-ELIR-3 IR Laser Illuminator 850nm for Weaver or Picatinny

Luna Optics Extended Range Laser IR Illuminator (LN-ELIR-3)

Newly updated laser IR illuminator built from thermoplastic materials (lighter and stronger than aluminum). Allows smooth rheostat-style power adjustment and a fully adjustable beam along the X/Y axis.

• Fits directly to Weaver or Picatinny rails
• Used with traditional image intensifier or digital night vision devices
• Compact and lightweight design
• Smooth power adjustment rheostat wheel
• Fully adjustable beam (width and position along the axis)
• Class-I, eye-safe 850nm infrared laser

Included Accessories

• Tethered protective cap
• Adjustment tool
• Mount (installed)

Specs

• Wavelength: 850nm
• Power (Class-I): 0.5mW
• Beam width: 0.1°–5° adjustable
• Max. range of view (Gen-1): 100m / 109yds
• Max. range of view (Gen-2+ or digital night vision): 150m / 164yds
• Max. range of view (Gen-3): 250m / 273yds
• Power source: 1x 3V Lithium CR123 type
• Operating time (max power): 4 hours
• Dimensions (without bracket): 122mm x 24mm x 31mm
• Weight (without bracket): 75g (2.6 oz)

Warranty

Luna Optics One-Year Limited Warranty
