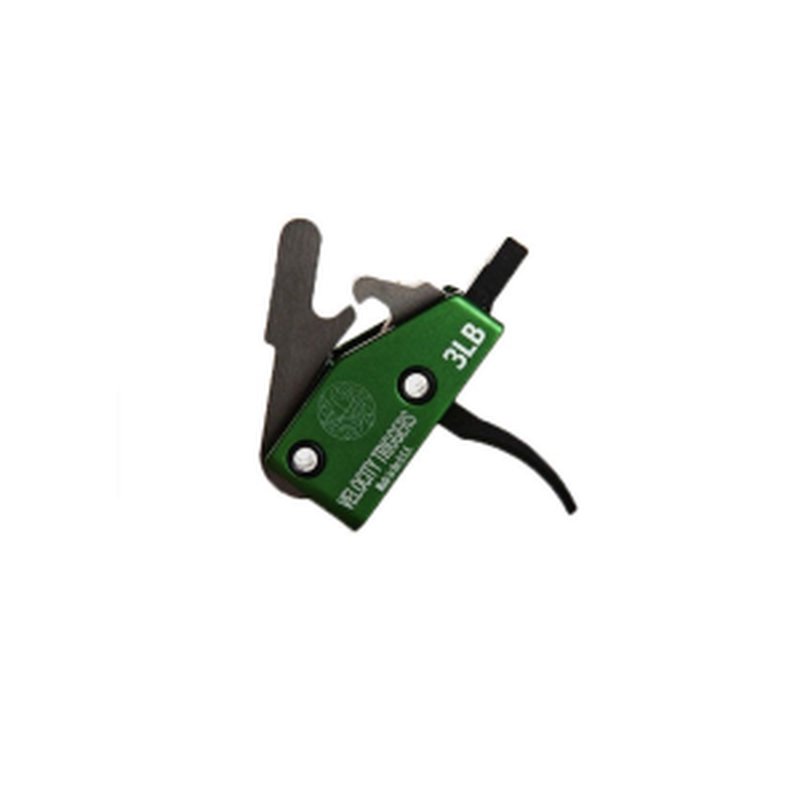

Velocity Triggers - 3lb. Velocity AR Trigger

Velocity Triggers - 3lb. Velocity AR Trigger

Try this Velocity Trigger that makes your AR feel like a bolt action rifle.

• Single Stage Drop-In Trigger
• 3 Lb Pull Weight
• Complete Drop-in Assembly
• Nice, crisp, clean feel
• Curved
• MADE IN THE USA

Installation Instructions:

• Check to be sure the chamber of your firearm is empty.
• Dry Fire your rifle.
• Push out the rear take down pin and the front pivot pin
• Remove the upper off of the lower
• Using a 1/8" punch, push out the 2 trigger pins holding in your trigger assembly. Set them aside you will reuse them.
• Remove all old trigger parts
• Then, remove screw from inside grip. Remove grip (carefully) Don’t lose the spring and plunger pin held in by grip.
• Now remove Safety
• Place Velocity Trigger in Lower
• Reinstall Safety
• Reuse/reinstall trigger pins making sure they are centered.
• Using the provided Allen wrench, from the top of the Velocity Trigger, tighten the two 8/32 screws located to the left and right of the hammer in the aluminum trigger housing.
• Using the provided 8/32 x 1/8" set screws, install these in the same location as the first 8/32 screws tightened. These are locking screws and all work to prevent your pins from walking out.
• Reinstall spring, plunger pin, grip and screw
• Place your thumb in front of hammer (do not let the hammer hit the Lower) It may cause damage.
• Cock the hammer, TEST THE SAFETY FUNCTION!!!
• Reinstall your upper.
• Congratulations, you have just made the greatest and easiest accuracy improvement to your rifle.
