Pistol Slide

Generation and Model Compatibility

Slides are specific to Glock model and generation. A G17 slide will not fit a G19 frame due to different dimensions. Always confirm compatibility:

• G17 / G34: Full-size, 5" barrel
• G19 / G23: Compact, 4" barrel
• G26 / G27: Subcompact, 3.5" barrel
• G43 / G48: Slim single-stack variants

Generation matters for the recoil spring assembly (Gen 3 single vs. Gen 4/5 dual capture) and some internal dimensions.

Optic Cuts

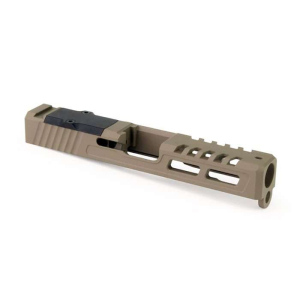

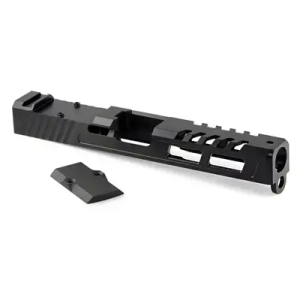

Optic-ready (OR) slides are milled to accept a direct-mount red dot or mini reflex sight, eliminating the need for a plate-based mounting system. This lowers the optic closer to the bore axis and reduces height-over-bore offset.

Footprint Compatibility: Common footprints include RMR/Holosun 407/507 (the most universal), Shield RMSc (for subcompacts), and DeltaPoint Pro. Some slides come pre-cut for a specific footprint; others offer a universal cut accepting multiple footprints via adapter plates.

Serrations

Front Serrations: Allow press-checks and slide manipulation from the front of the slide. Popular for competition and administrative handling.

Rear Serrations: Standard on all slides for racking. Aftermarket slides often feature more aggressive patterns than factory for improved grip.

Top/Lightning Cuts: Milled pockets on the top and sides reduce weight and add visual interest. They can improve balance but are primarily aesthetic.

Coatings and Finish

DLC (Diamond-Like Carbon): Extremely hard, very slick, excellent corrosion resistance. Premium option.

Nitride/Ferritic Nitrocarburizing: Case-hardened surface treatment with good hardness and corrosion resistance. Very common and cost-effective.

PVD Coatings: Physical vapor deposition coatings like TiN (gold) or TiCN (bronze) offer good hardness and unique aesthetics.

Cerakote: Applied finish available in virtually any color. Adds corrosion protection and extensive color options.

Selection Guidelines

Choose an optic-compatible slide if you plan to run a red dot—it is far superior to a plate system. Confirm model and generation compatibility with your frame. Reputable manufacturers include Agency Arms, Zev Technologies, Lone Wolf, Brownells, and Faxon Firearms.
