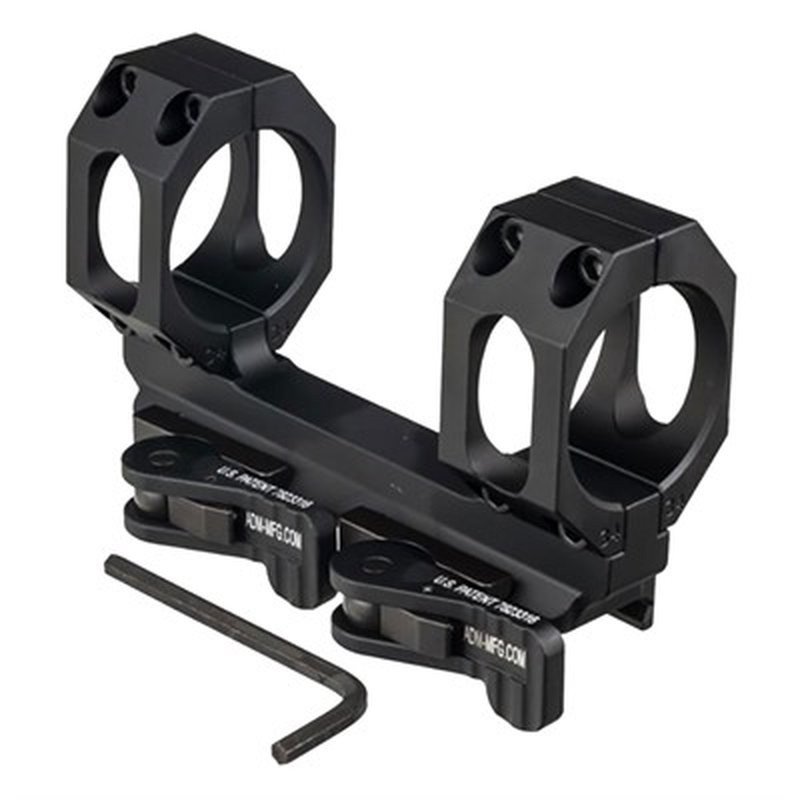

American Defense Recon-S No Offset Scope Mount

Overview

Quick-release lever-lock system clamps solidly to flattop rail and will not work loose even under heavy recoil—the more force acting on the lever, the tighter it locks. Depress the release tab to swing the lever open and lift the mount off the rifle.

Adjustable with a flat head screwdriver or coin for an ultra-secure, no-slip fit on almost any Picatinny or Weaver-style rail, including over- or under-sized commercial rails. Lever may be configured to lock to the front or the rear.

Large locking bar engages maximum rail area, while the crossbolt and two integral locking lugs ensure rock-solid engagement of rail slots to prevent movement under recoil.

Five heavy duty steel hex head screws clamp the vertically split ring halves together. Cutouts in the ring sides and base reduce weight without sacrificing strength.

Quick-Release Scope Mount one-piece base with dual-lever system provides mounting and fast removal/reattachment.

Specs

• Material/finish: 6061 T6 aluminum, hardcoat anodized, matte black
• Length: 4-1/2 in (11.4 cm)
• Coverage: Each ring covers 1 in (2.5 cm) of scope tube length
• Ring height: 0.890 in (top of rail to bottom of scope body)
