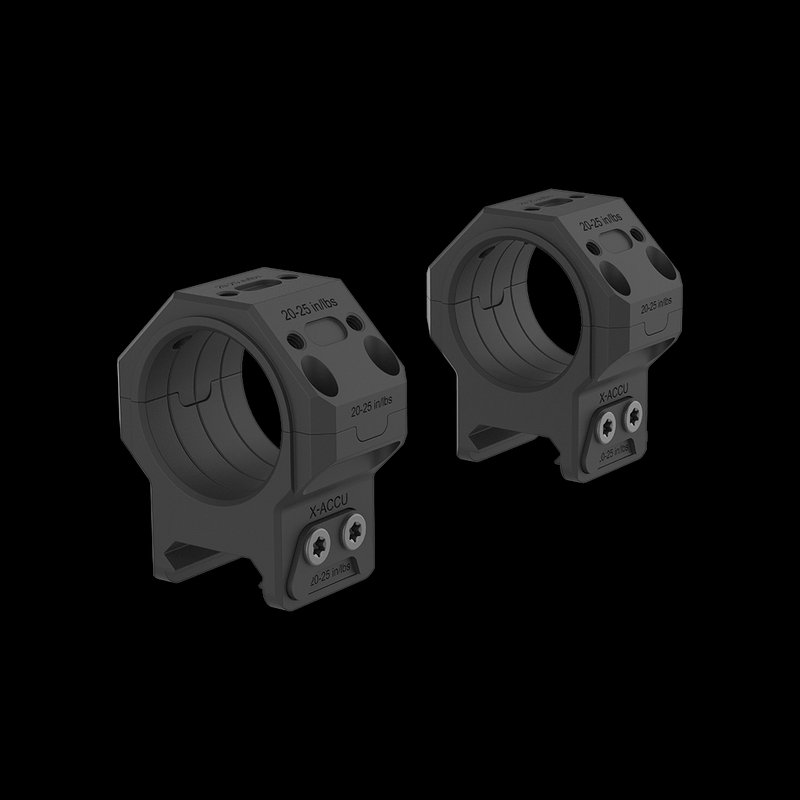

Vector Optics X-MOD 30mm Modular Picatinny Rings System (XASR-3071/3072/3073)

Features

• VAS™ Series X-MOD interface supporting red dot plates, Picatinny rails, and modular attachments (full system compatibility)
• 30mm rings with center heights:
  • 24 mm / 0.95 in
  • 28 mm / 1.10 in
  • 32 mm / 1.25 in (bottom to center)
• 5-axis CNC machined 7075-T6 aluminum for rigidity and precise dual-ring alignment
• Reliable recoil resistance up to .50 BMG
• 20μm black anodized finish for scratch resistance and corrosion protection

Specifications

• Ring diameter: 30 mm / 1.2 in
• Heights: 53.5 mm / 2.1 in; 57.5 mm / 2.2 in; 61.3 mm / 2.4 in
• Central height (bottom to center): 24 mm / 0.95 in; 28 mm / 1.10 in; 32 mm / 1.25 in
• Width: 48 mm / 1.9 in
• Material: 7075-T6 aluminum alloy
• Weight: 70 g / 2.5 oz; 78 g / 2.8 oz; 82 g / 2.9 oz
• Torque: 20–25 in/lbs (2.3–2.8 N·m)
• Mount: Picatinny
• Finish: Black matte
• In the package: T15 Torx wrench

Package / Docs

• User manual: X-MOD Modular Picatinny Mount & Rings System User Manual
