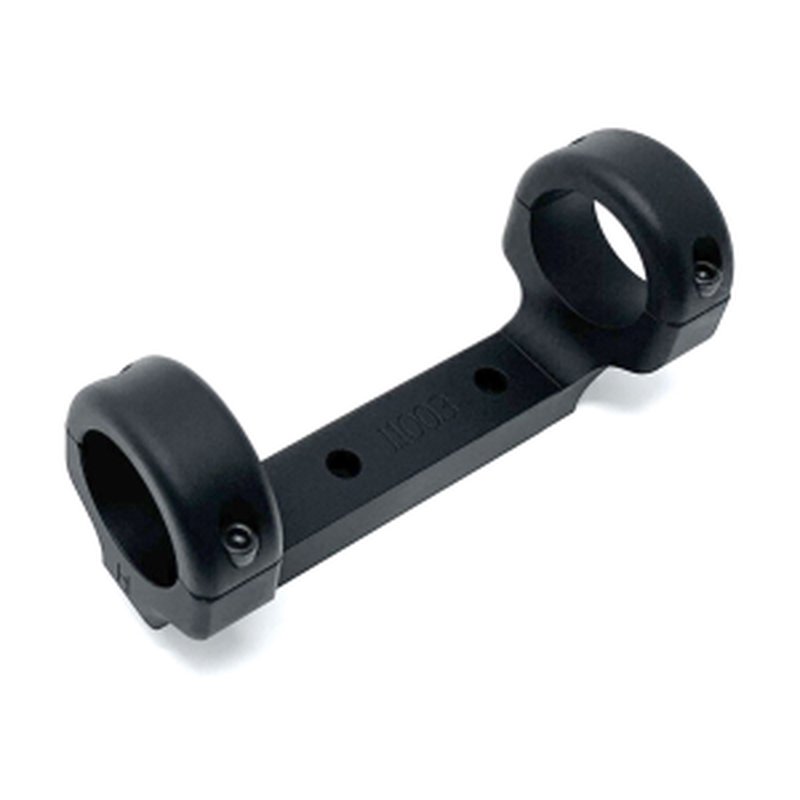

DNZ Game Reaper 1in High Black 1-Piece Scope Mount (11003) - 1-inch

DNZ Game Reaper 1in High Scope Mount (11003)

• Precision machined from a solid block of top-grade billet aluminum
• Custom made to fit the firearm and align with the rifle receiver
• No moving parts between the firearm and the scope
• 67% lighter than comparable one-piece mounts; precision socket-head cap screws
• Absorbs shock and withstands temperature extremes better than steel mounts
• Made in the USA

Fitment

• Harrington and Richardson: Handi Rifle and slug barrels / Henry Single Shot Rifles

Hardware / Dimensions

• Tube size: 1 in
• Base screws: 6-48 x 1/4 in (uses 7/64 in Allen wrench)
• Ring screws: 6-40 x 5/8 in (uses 7/64 in Allen wrench)
• Outside-to-outside of rings: 4.30 in
• Ring width: .63 in (standard) or .80 in (tactical)
• Ring screw count: 2 per ring (standard) / 4 per ring (tactical)
• Hole-to-hole spacing: 1.00 in and 1.30 in
• Height from top of barrel to scope tube centerline: High 1.25 in

Warranty / Spec Notes

• Material: 6061-T6 aluminum
• Pieces: 1
