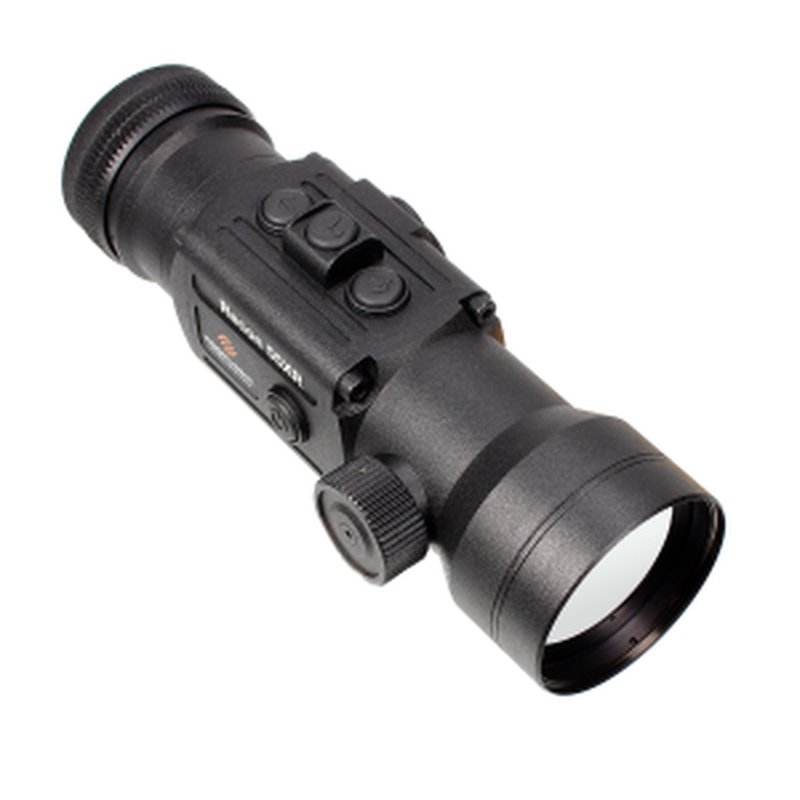

Fusion Thermal Recon 55XR-LH Left-Hand Thermal Clip-On Day Converter

Overview

Recon 55XR-LH is a thermal clip-on (day scope converter) designed for left-handed shooters. The target focus knob is placed on the right side of the objective lens housing to make it easier for lefties to reach.

Key features

• Lefty Variant — special version for left-handed shooters
• MORE (Magnification Optimizing Range Enhancement) optical system
• T3 — Three-button control system with center tower
• KISS — simplified menu
• WAVE12 — 640 × 512, 12-micron uncooled thermal sensor
• Arclight — 55mm ultra HD objective lens
• XGEN — armored housing
• Micro Click Focus — fast click-by-click precision focus
• Exceptional detection range: up to 2600 yards
• Fast start-up: 6-second start-up time (functional use)
• Monocular mode for handheld viewing applications
• Multiple gun profiles: save up to 5 zeros
• 5-year transferable warranty
• Made in the European Union

Specs (from listing)

• Thermal sensor: 640 × 512, VOx uncooled (WAVE12)
• Sensor pixel size: 12 micron
• Objective lens diameter: 55mm (Arclight)
• Frame refresh rate: 50 Hz
• Field of view (clip-on & monocular): 460 at 1000 yards (base level)
• Base magnification (clip-on mode): 1X (before digital zoom)
• Digital magnification (clip-on mode): none
• Base magnification (monocular mode): 1X (before digital zoom)
• Digital magnification (monocular mode): 2x and 4x (2-step digital zoom)
• Display: Super HD OLED RGBW / 3.2 million dots
• Color palette modes: 4 (white hot, black hot, red hot, rainbow)
• Detection range: up to 2600 yards
• Start-up (cold start): 5 seconds (logo appearance to functional use)
• Start-up (power saver mode): instant (button press to functional use)
• Battery saver: auto shutdown with user time selection
• On-board video record: no (external recording possible)
• Video output: yes (via USB-C port)
• WIFI equipped: no
• Battery type: CR123A 3V batteries or 3.7V rechargeable (2x)
• Expected battery life: ~3 hours (typical operation)
• External power supply: yes (via USB-C port)
• Recoil rating: 300 Win Mag
• Nitrogen purged: yes
• Waterproof rating: IP67
• Front lens housing outside diameter: 59.1 mm
• Clip-on adapter ring threading: M52x.075 male
• Length: 7.75 in (housing front to housing back)
• Weight: 19.7 oz (without batteries or lens covers)
