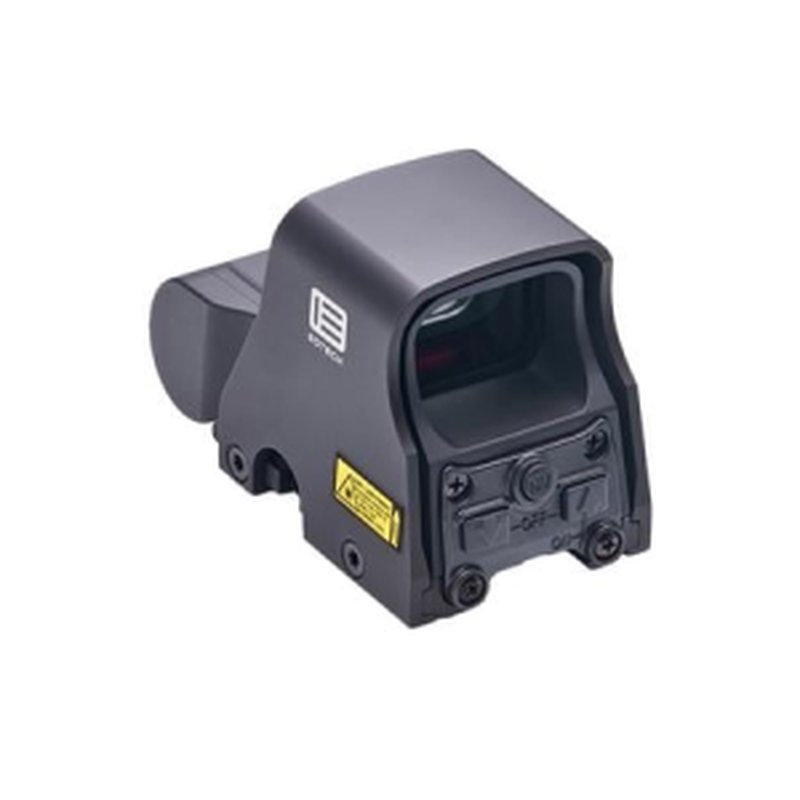

EOTech XPS3 Holographic Weapon Sight

This sight is smaller and lighter than the other EOTech HWS sights and runs on a single 123 battery. With the new single battery configuration, the XPS allows more rail space than ever, leaving more room for rear iron sights, magnifiers or NV mount. Smaller, lighter and always fast; the XPS series is a great compact option for your platform.

• Single transverse 123 battery to reduce sight length
• Shortened base only requires at most 2 3/4 inch of rail space
• Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
• Average battery life at brightness level 12 is roughly 600 hours
• The XPS3 is Night Vision compatible, for non-Night Vision compatible units see the XPS2 sights.

Operation

• Optics: Transmission holography - parallax free
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height (inches): 3.5 x 2 x 2.4 (88.9X50.8x60.96)
• Weight: 8 oz (227 grams)
• Temperature: -40 to 150 F
• Waterproof: Submersible to 33 ft depth
• Sealing: Fogproof internal optics
• Adjustment (per click): 0.5 MOA (1/2 inch at 100 yds)
• Adjustment Range: +/- 40 MOA travel
• Mount: 1 inch Weaver or Picatinny (MIL-STD-1913) rail
• Return to Zero: Repeatable to 2 MOA after re-mounting
• Night Vision Compatibility: yes, 10 additional settings

Heads-Up-Display Window The HWS employs a true Heads-Up Display that eliminates blind spots, constricted vision, or the tunnel vision associated with tube sights. All user controls are flush to the HWS's streamline housing with no protruding knobs, battery compartments or mounting rings blocking vision at the target area. True, 2 eyes open shooting is realized. Instant threat identification is achieved by maximizing the operators peripheral vision and ultimately gaining greater control of the engagement zone.

• Optical Surfaces: Anti-glare coating
• Window Dimensions (inches): 1.20 x 0.85 (30 x 23mm)
• Front Window Material: 1/8 inch solid glass
• Rear Window Material: Shatter resistant laminate (3/16 inch thick)
• Field of View (100 yds): 30 yds (28m) at a 4 inch eye relief

Electrical

• Brightness Adjustment Range: 146,000:1 brightest to lowest
• Night Vision Brightness Range: 1280:1 with NV switch engaged
• Power Source: (1) 123 lithium battery
• Battery Life: 600 continuous hours at nominal setting 12
• Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
• Auto Battery Check Indicator: Flashing reticle upon start-up
• Auto Shut-down: At 8 hrs- programmable to 4 hrs
