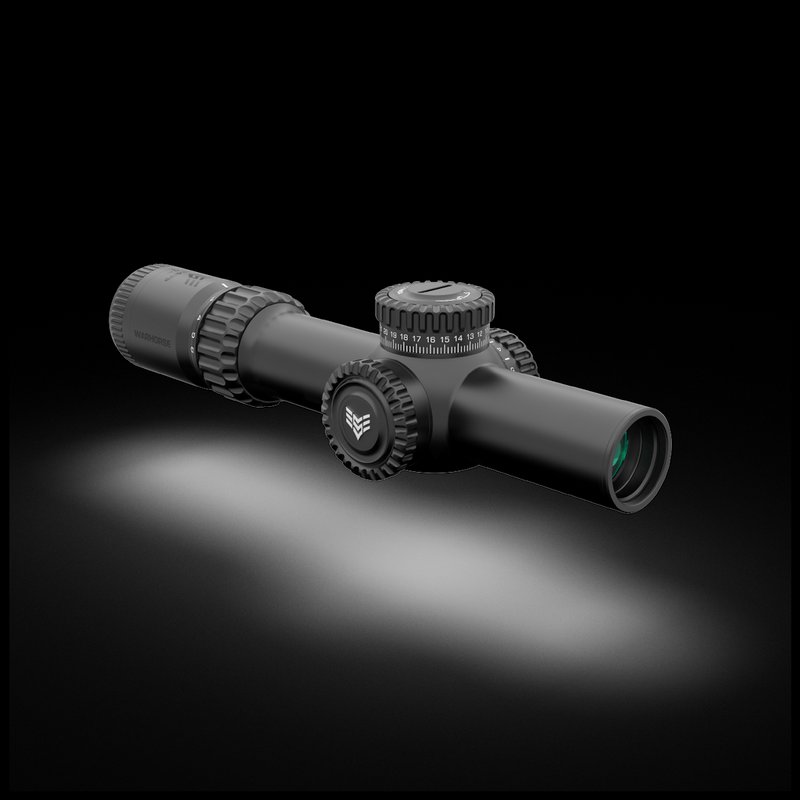

Swampfox Warhorse 1-6x24 FFP LPVO Dragoon MIL Riflescope 34mm 23.37 oz

Overview

Swampfox Warhorse is a first focal plane (FFP) low power variable optic (LPVO) with 1x to 6x magnification.

Warhorse features a push/pull locking elevation turret with zero reset, capped windage turret, and a 12-position illumination turret with night vision compatibility. The scope is built on a 34mm tube and includes an etched DRAGOON MIL reticle.

Reticle

DRAGOON MIL (Red illumination) Designed for speed at 1x and precision at 6x. Includes a horseshoe and center dot illumination; at 6x the MIL tree provides holdover points for longer-range shots.

Key specs

• Magnification: 1-6x
• Tube diameter: 34mm
• Objective lens diameter: 24mm
• Exit pupil: 7.7mm–3.7mm
• Eye relief: 3.43"–3.50" (1x–6x)
• FOV @ 100 yards: 105.68'–18.32' (1x–6x)
• Click value: 0.25 MOA or 0.1 MIL
• Parallax setting: 100 yds
• Elevation adjustment: 150 MOA / 43.63 MILS
• Windage adjustment: 100 MOA / 29.08 MILS
• Turrets: Push/Pull locking elevation turret with Zero Reset; capped windage turret
• Illumination: 12 position with intermittent off
• Battery: side-mounted CR2032
• Fast focus diopter: -2.5 to +2.5
• Waterproof rating: IPX7
• Impact resistance: 1,100 G

In the box

• Warhorse 1-6x FFP LPVO
• Flip Up Lens Covers
• Free Throw Lever
• Allen 1.98mm Wrench For Throw Lever
• Lens Cloth
• S-Wing Wrench
• CR2032 Battery
• Scope Manual
• Reticle Manual
