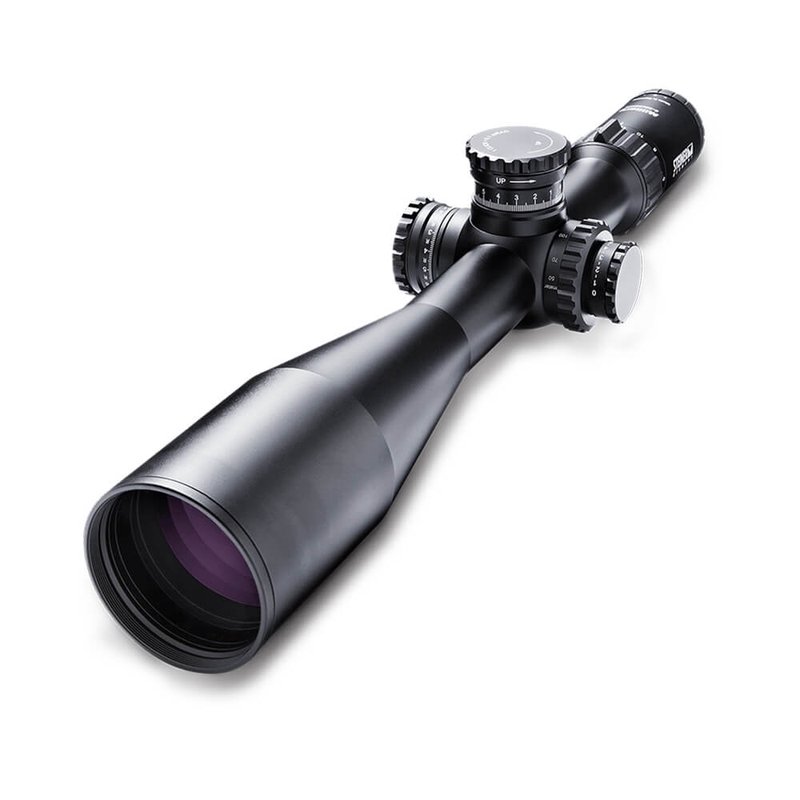

Steiner M5Xi 5-25x56 Riflescope 34mm Tube MSR2 FFP

Overview

The German-made Steiner Optics M5Xi series features precision optical systems built to strict military specs.

Long-range riflescope with 34mm tube, true 25x magnification, etched glass reticles, and patented DuoScale elevation with a second-rotation scale hidden when inactive.

Included accessories: Battery, Lens Cloth, Lens Cover.

Key Specifications

• Magnification: 5.25x–25x
• Reticle: MSR2
• Objective lens: 56mm
• Focal plane: First focal plane (FFP)
• Tube diameter: 34mm
• Eye relief: 3.5–4.3 in
• Exit pupil: 2.2–9.8 mm
• Length: 16.6 in
• Weight: 36.3 oz

Adjustments / Controls

• Diopter adjustment range: -3 to +2 dpt
• Elevation knob: Duo Scale / Resettable Zero
• Illumination control: Rotary digital control with intermediate stops
• Wind/Elevation click value: 1 cm
• Elevation range (100 m): 260 cm (26 mils)
• Wind range (100 m): ±60 cm (±6 mils)
• Parallax/Focus range: 50 m to Infinity

Durability / Environmental

• Nitrogen filled: Yes
• Operating temperature range: -13 to +145 °F
• Waterproof/fogproof: Submersible to 33 ft
• Lens cap: Yes

Other Features

• Resettable turrets
• Second rotation indicator
• Zero stop
• Battery: CR2450
• Warranty: Heritage Warranty
