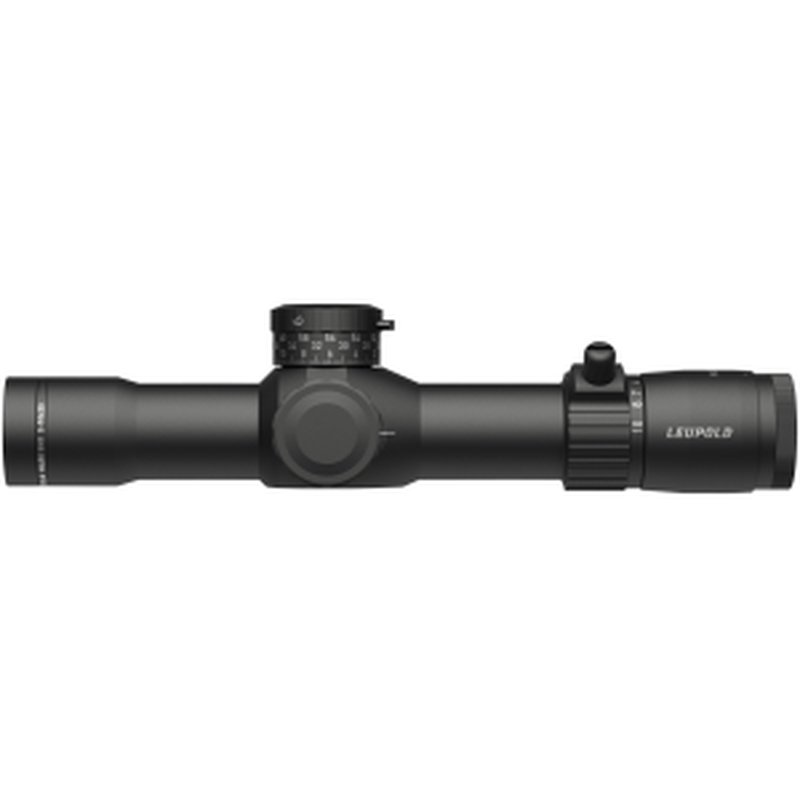

Leupold Mark 5HD 2-10x30mm FFP Rifle Scope, 30mm Objective, Illuminated Reticle

Overview

The Mark 5HD 2-10x30mm exemplifies military tradition. Created as an evolution of the riflescopes used on the MK12 SPR, this modern optic extends the limits of tactical carbines.

Key Features

• 5:1 zoom ratio
• Professional-grade optical system
• First focal plane (FFP)
• Motion Sensor Technology (MST)
• Custom BDC dial compatible
• Lightweight aluminum housing
• Zero Lock dial
• Zero Stop
• Side focus
• Removable throw lever
• Waterproof, fogproof, and shockproof

Reticle Options

• Illuminated FFP TMR
• TMR
• FFP PR-1MOA
• CR-MIL

Specifications (from listing)

• Adjustable parallax: Side focus
• Adjustable objective: No
• Adjustable elevation dial type: M5C3, M1C3
• Locking dial: Yes
• Magnification type: Variable
• Revolution indicator: Yes
• Reteicle: Illuminated FFP TMR, TMR, FFP PR-1MOA OR CR-MIL
• Rezero type: Set screw
• Windage adjustment type: Capped
• Weight: 24 oz
• Elevation adjustment value per click: 0.1 mil, 1/4 MOA
• Elevation adjustment range: 165 MOA / 48 MIL
• Elevation adjustment range: 480 cm @ 100 m
• Elevation adjustment per revolution: 10.5 mil, 25 MOA
• Elevation dial travel limit: 30 mil, 71.5 MOA
• Windage adjustment value per click: 0.1 mil, 1/4 MOA
• Windage adjustment range: 80 MOA / 23 MIL
• Windage adjustment range: 230 cm @ 100 m
• Windage adjustment per revolution: 10 mil, 24 MOA
• Magnification max: 10x
• Magnification min: 2x
• Objective lens diameter: 30 mm
• Eye relief: 3.6 in (low), 3.7 in (high)
• Fixed parallax-free distance: 40 yd
• Battery: CR-2032 (#179703)
• Battery life: 1800 hr (low intensity), 96 hr (high intensity)
• Number of illumination settings: 7
