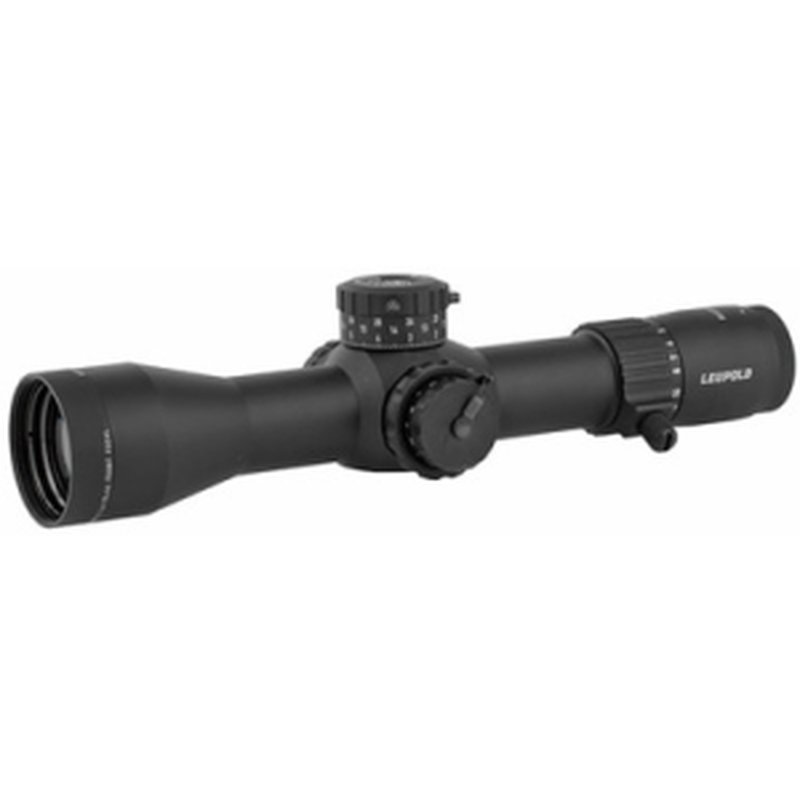

Leupold Mark 5HD 3.6-18x44mm 35mm Illum FFP TMR Matte Scope

Overview

Leupold Mark 5HD 3.6-18x44mm variable riflescope with a 35mm tube, first focal plane (FFP) illuminated TMR reticle, side focus parallax, and M5C3 elevation adjustments. Matte finish.

Scope Specifications

• Magnification: 3.6x – 18x (variable)
• Objective lens diameter: 44mm
• Reticle: Illuminated FFP TMR (Mk)
• Illumination: 7 settings
• Illuminated reticle battery: CR2032
• Adjustable parallax: Side focus
• Elevation adjustment type: M5C3
• Locking dial: Yes
• Revolution indicator: Yes
• Windage adjustment type: Capped
• Switch type: Dial
• Rezero type: Set screw
• Elevation adjustment value per click: 0.1 Mil
• Elevation adjustment range: 100 MOA / 29 Mil / 291 cm @ 100m
• Elevation per revolution: 10.5 Mil
• Elevation dial travel limit: 30 Mil
• Windage adjustment value per click: 0.1 Mil
• Windage adjustment range: 80 MOA / 23 Mil / 233 cm @ 100m
• Windage per revolution: 10 Mil
• Minimum parallax-free distance: 50 yd
• Field of view (linear) low mag: 28.3 ft @ 100 yd
• Field of view (linear) high mag: 5.8 ft @ 100 yd
• Field of view (angular) low mag: 5.4°
• Field of view (angular) high mag: 1.1°
• Eye relief low mag: 3.5 in
• Eye relief high mag: 3.8 in
• Battery life (low intensity): 1800 hr
• Battery life (high intensity): 96 hr
• Scope ring set size / tube size: 35mm

Additional Notes

• BDC dial included: No
• Custom dial system (CDS): No
• Custom BDC dial compatible: Yes
• Daylight bright illumination: No

Build/Use

• Lightweight 26 oz build
• 100% waterproof and fogproof
• Designed, machined, and assembled in the USA
