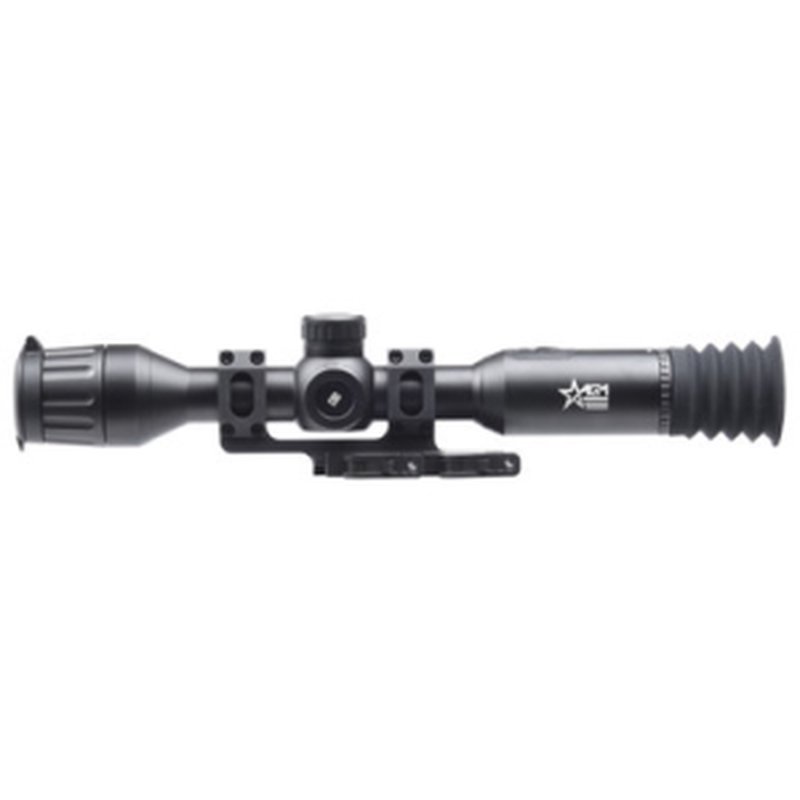

AGM Adder TS35-384 Thermal Rifle Scope 384x288 35mm Wi‑Fi 30mm

Overview

The AGM Global Vision Adder TS35-384 thermal imaging rifle scope features a traditional 30mm scope body design with onboard Wi‑Fi, 64GB EMMC storage, video and audio recording, Shot Activated Recording (SAR), and a 1024×768 OLED display. Dual power supports up to 15 hours of continuous operation.

Mounting

• Includes a 30mm American Defense Manufacturing (ADM) AD Recon scope mount
• Can also be mounted using standard 30mm scope rings

Features

• 384×288 thermal resolution
• 12µm high-sensitivity detector
• Fast 50 Hz imaging
• High-resolution OLED display
• Digital zoom: 1×, 2×, 4×, 8×
• On-board video and audio recording
• Shot Activated Recording (SAR)
• Wi‑Fi data transmission
• Built-in 64GB EMMC storage
• Various reticle types and colors
• Adjustable color palettes
• Standby mode
• Waterproof and shockproof
• Dual power system
• Up to 15 hours continuous operation
• External power supply capability
• 5-year warranty

Specifications

• Magnification: 3×–24×
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• Reticle: 5 types, 4 colors, on/off
• Boresight adjustment: Digital controlled
• Boresight increment: 0.13 mil / 0.44 MOA
• Distance measurement: Yes (stadiametric)
• Scene mode: Jungle, Recognition
• Picture-in-picture (PIP): Yes
• Video recording: Yes
• Defective pixels correction (DPC): Yes
• Uniformity correction: Auto, Manual, External correction
• Detector type: 12µm, Uncooled, 50 Hz, <35 mK (25°C, F#=1.0)
• Resolution: 384×288
• Detection range (6' object): 1800 m / yd
• Snapshot: Yes
• Lens system: 35 mm; F/1.0
• Field of view (H×X): 7.5° × 5.6°
• Digital zoom: 1×, 2×, 4×, 8×
• Diopter adjustment range: -5 to +5 dpt
• Eye relief: ≥ 60 mm
• Display: 1024×768, 50 Hz, OLED
• Storage: 64GB EMMC
• Battery: Two 18650 rechargeable batteries (built-in) and one CR123 battery
• Wi‑Fi: Yes
• CVBS output: Yes (via USB)
• Battery life (operating): Up to 15 hr
• Power supply: 5 VDC/2 A, USB Type-C (supports QC3.0)
• Operating temperature: -30°C to +55°C (-22°F to +131°F)
• Protection rating: IP67
• Weight: 890 g (1.96 lb)
• Overall dimensions: 407 × 78 × 76 mm (16.0 × 3.1 × 3.0 in)
