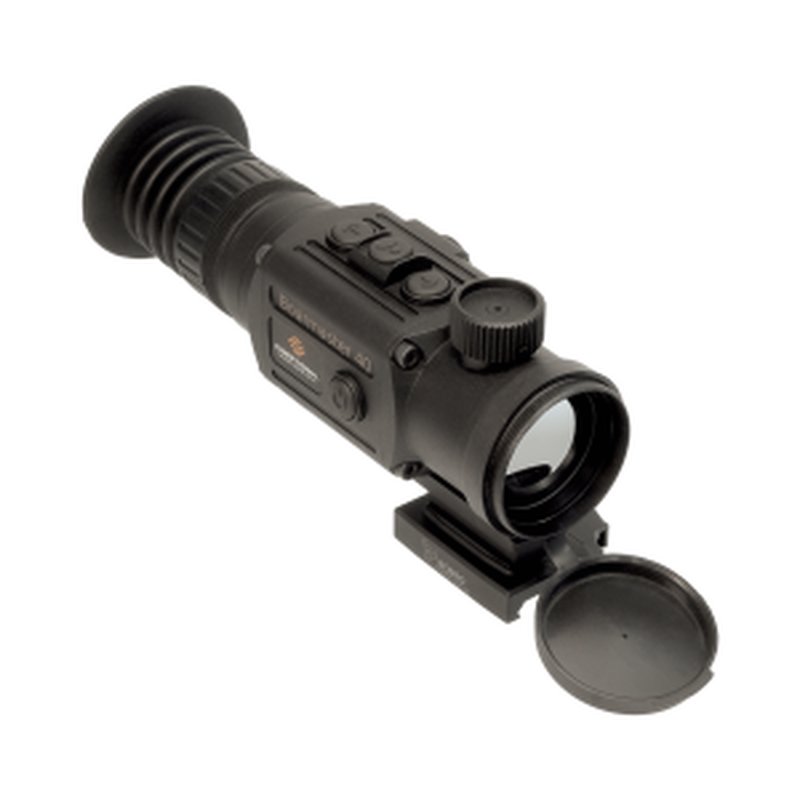

Fusion Thermal Boarmaster 40 TS100 Thermal Scope 40mm WAVE17 384x288

Overview

Fusion Thermal Boarmaster 40 (TS100) thermal scope built for simplicity and affordability while maintaining strong optical performance.

Key features

• T3 – Three Button Control System
• KISS (Keep It Simple Stupid) operating menu with English text
• WAVE17 thermal sensor: 384×288 VOx uncooled, 17-micron
• Arclight Ultra HD germanium objective lens: 40mm
• XGEN alloy housing
• Micro Click Focus (click-by-click precision focus)
• 6-second cold start / instant logo-to-functional
• Premium tactical QD scope mount
• Five year transferable warranty
• Nitrogen purged
• Water resistance: IP67 (with port covers in place)

Specs (as listed)

• Thermal sensor: 384×288, VOx Uncooled (WAVE17)
• Sensor pixel size: 17 micron
• Objective lens diameter: 40mm (Arclight)
• Frame refresh rate: 50 Hz
• Field-of-view: 492 ft @ 1000 yards (2.5x optical magnification)
• Base level magnification: 2.5x (before digital zoom)
• Digital magnification: 5x & 10x (2-step)
• Display: Super HD OLED RGBW / 3.2 million dots
• Color palette modes: 4 (white hot, black hot, red hot, rainbow)
• Reticle options: 7 (+ “no reticle” 8th option)
• Reticle colors: 5 (white, black, red, green, blue)
• Gun profiles: up to 5 saved zeros (G1–G5)
• Detection range: up to 1500 yards
• Start-up time (cold start): 6 seconds
• Start-up time (power saver): instant
• Auto shutdown battery saver: yes (30 min without use)
• On-board video record: no
• Video output: no
• WiFi equipped: no
• Battery: CR123A 3V batteries or 3.7V rechargeable (2x)
• Expected battery life: ~4 hours typical operation
• External power: yes via USB-C
• Recoil rating: 300 Win Mag
• Front lens housing outside diameter: 49.7mm
• Length: 6.5 in (front housing to back housing)
• Weight: 18.3 oz (without mount or batteries)

Note: Product includes an ITAR control statement on the manufacturer page.
