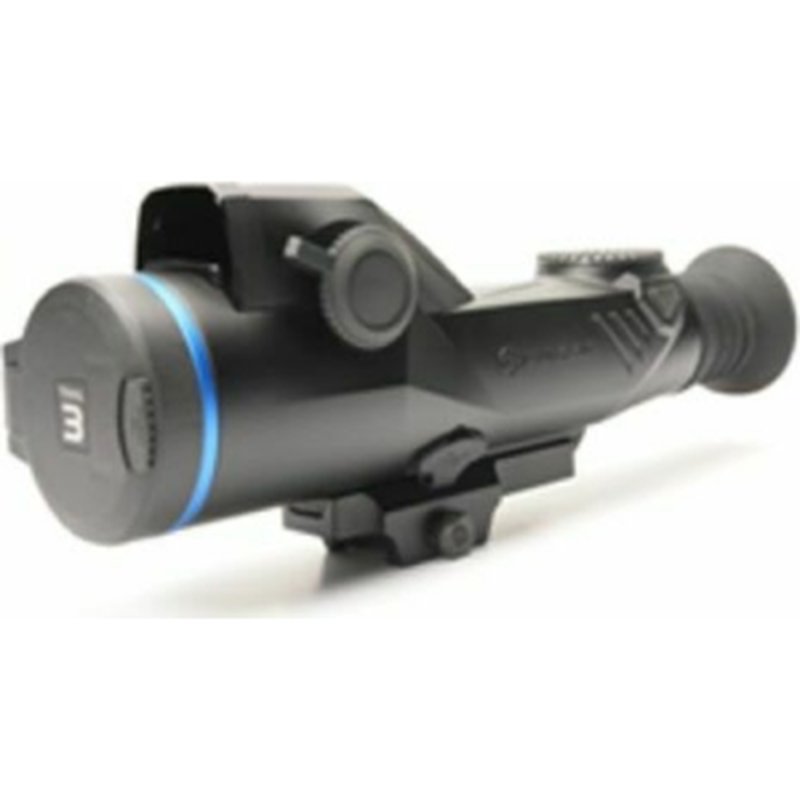

Pulsar PL76588K Trail 3 XR50 Thermal Scope 3-24x 30mm 640x480 LRF

Pulsar PL76588K Trail 3 XR50 Thermal Scope (30mm, 640x480, LRF)

Designed for mid- to longer-range hunting where detection and shot placement matter most.

Main specifications

• Sensor: 640x480 / 12um (uncooled microbolometric)
• Sensor NetD: < 30 mK; System NetD: < 18 mK
• Magnification: 3-24x
• Objective: F50 / 1.0 (50mm)
• Field of view (HxV): 8.8°
• Detection range: up to 2300 m
• Diopter adjustment: -5 / +5
• Reticle: multiple; 10 preloaded reticles
• Frame rate: 50 Hz
• Display: AMOLED, 1920x1080

Laser rangefinder

• Max measuring range: 1200 m
• Measurement accuracy: 1 m
• Wavelength: 905 nm
• Laser safety class: IEC 60825-1:2014 class 1

Recording & connectivity

• Video/photo resolution: 1440x1080
• Recording formats: .mp4 / .jpg
• Built-in memory: 64 GB
• Wireless: Bluetooth (BLE 4.2) and Wi-Fi (802.11 b/g/n/ac)

Durability & power

• Ingress protection: IP67
• Operating temperature: -25 to +50°C
• Shock resistance: rated for smooth-bore caliber 12; max recoil power 6000 J (Eo)
• Battery: LPS 7i, 6400 mAh; operating time 11h @ 2°C
• External power: 5V/9V USB Type-C

Mounting

• Tube diameter: 30mm rings
• Includes mount: multi-point prism (mount compatibility specified as included)

Body

• Body material: magnesium alloy
• Dimensions: 271 x 86 x 71 mm
• Weight: 0.7 kg
