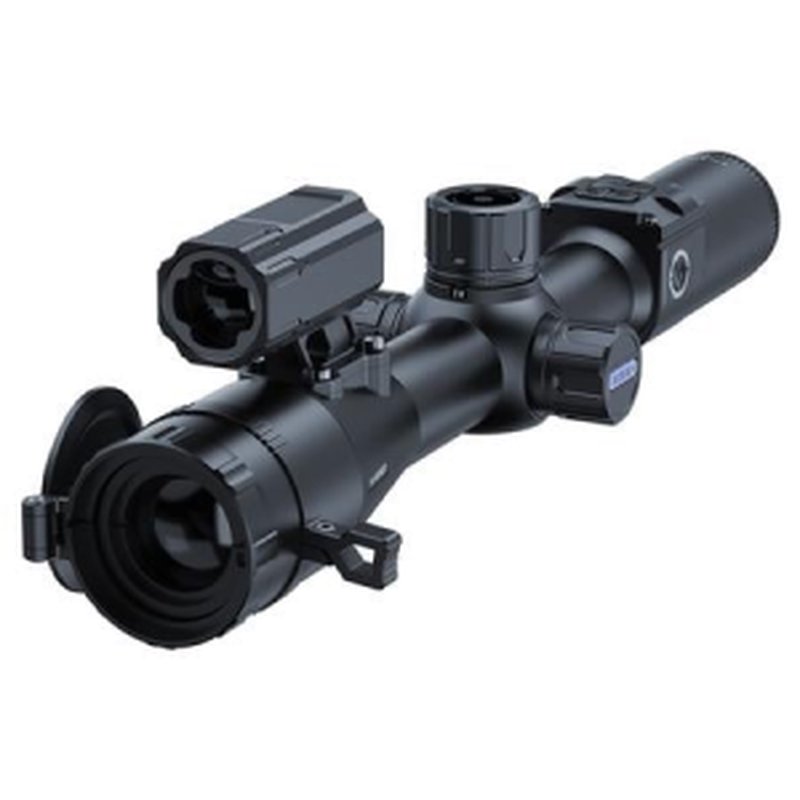

Pard TS34 35mm Thermal Imaging Riflescope with LRF

Pard TS34 35mm Thermal Imaging Riflescope with LRF

Product Features

• Long Eye-relief for Viewing Comfort: 100mm eye-relief and a wide field of view; rubber eyepiece provides protection against recoil and effectively conceals the illuminated display at night
• Ultra-clear Display: Thermal image can be used individually at night, or in combination with picture-in-picture (PIP) for target recognition during daytime
• Traditional Circular Design: 800×800 circular display; digital settings displayed around the outer edges for easy viewing
• Sensor: 12µm LWIR VOx sensor; 384×288 (or 640×480) pixels; NETD ≤ 25mK; 12µm pixel pitch
• Fast Detection: LRF up to 1200 yards; compact ranging module with rapid detection; integrates with ballistic features
• Ballistic Calculator: Integrated to calculate velocity, bullet weight and zero range
• Infrared Image Enhancement Algorithm (IREA): Improves image detail and reduces distortion
• Self-activated Recording: Records shooting moments in a 20-second interval when recoil is detected
• Intuitive Control Knob: Mult-function control for quick access to features
• WiFi: Built-in wireless connectivity for external viewfinder and media transfer
• Firmware Upgrade: Updates via TF card
• Battery: 18650 Li-ion battery; up to 5 hours runtime depending on usage
• Connections: HDMI output, USB-C Power
• IP67 Waterproof: Designed to withstand wet, snowy environments
• Lens Lever: Manual focus control for precise targeting
• Display Options: Six reticle styles and four colors (red, white, yellow, green)

Optics Specifications

• Objective Lens: 35mm
• Magnification: 3.7x
• Digital Zoom: 6x
• Field of View: 5.6 degrees
• Eye Relief: 100mm
• Diopter Adjustment: -3 to +5

Display

• Type: IPS LCD
• Resolution: 800×800
• Reticle Style: 6
• Reticle Color: 4 options
• Scene Modes: City, rain, forest
• Image Modes: White Hot, Black Hot, Edge, Red Hot, In-Hot, Sky

Photo/Video

• Photo Resolution: 1536×1536
• Photo Format: JPG
• Video Resolution: 768×768
• Video Format: MP4
• Storage: TF Card (up to 128GB)
• Image Engine: PARK IREA

LRF Detection: 1200 yds
