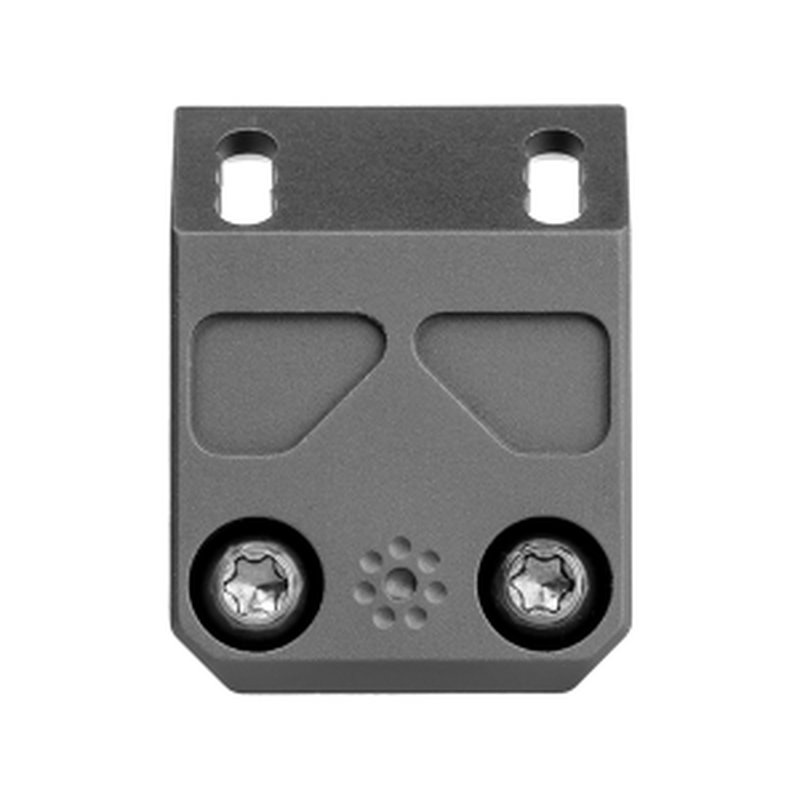

Arisaka Defense Offset Scout Weapon Light Mount for SIG MCX (Black)

Overview

The Arisaka Defense Offset Scout Flashlight Mount orients a compatible Scout-style weapon light at a 45° angle and tucks it closer to the top rail.

Positioning / Mounting

• Positions the light at approximately the 1:30 or 10:30 clock positions (light oriented upwards)
• Or approximately the 4:30 or 6:30 clock positions (light oriented downwards)
• Includes three lateral mounting positions for the light body (approx. 0.240 in span)

Compatibility

Designed for Scout-style mounting platform lights and compatible with:

• Modlite 183560 and 18650 bodies/lights
• SureFire M300 series (A/B/C/V, M312, M322, M312V, M313V, M322V, M600B/C/P/U/V/DF, M612, M622, M603V, M612V, M622V)
• Streamlight Protac Rail Mount 1/2 and HL-X (non-laser)
• Olight Odin
• CD REIN
• Arisaka 300 and 600 series

Construction

• CNC machined from 6061-T6 aluminum
• MIL-A-8625 Type III hard coat anodized finish

Installation Notes

• Includes necessary screws to attach the light body to the mount
• Requires an IP20/T20 Torx driver for installation (not included)
• Recommended torque:
  • 30 in-lbs for M-Lok screws
  • 20 in-lbs for light body screws (use Loctite 222 or 243)

Made in the USA.
