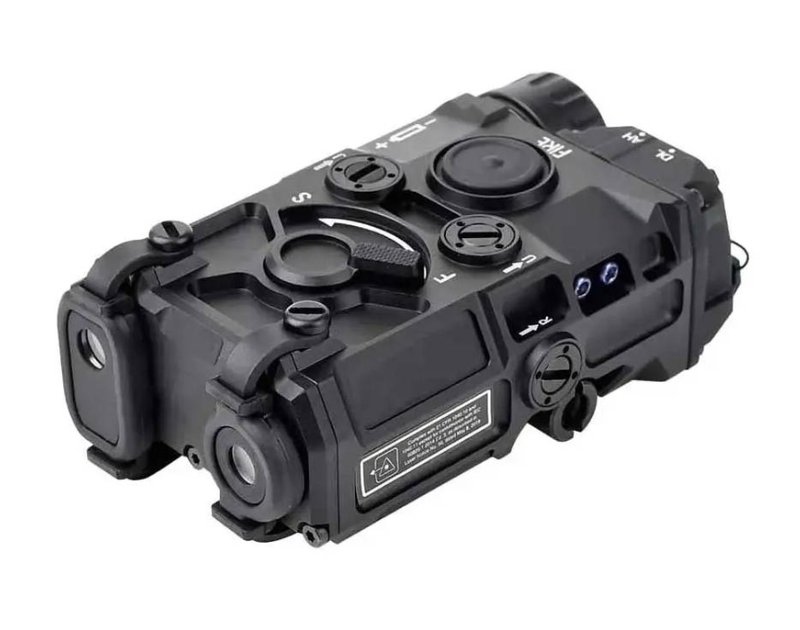

The Commercial On-Gun Laser (OGL-C) is an eye-safe, consumer-ready version of the OGL designed for military and law enforcement. It features a rugged machined aluminum housing, mode selector switch, windage and elevation adjustments, focus slide, mounting system, and protective covers. It provides coaligned green visible and IR aiming lasers for daylight or low-light use, plus an IR illuminator. Optimized for top-rail placement but adaptable to either side of the handguard, the OGL-C is engineered so its lasers and illuminator avoid interfering with front iron sights.
Specifications:
- Dimensions: 4.1 in long x 2.3 in wide x 1.5 in tall
- Weight: 8 oz
- Material: Machined Aluminum
- Battery Type: CR123A, Lithium Metal
- Battery Life: 9 Hours
- Water Resistance: 10 m
- Green Laser: Output High ≤ 0.5 mW, Beam Divergence < 0.5 MRAD, Wavelength 515 ±15/−5 nm
- IR Aim Laser: Wavelength 850 ± 10 nm, Output ≤ 0.67 mW
- IR Illuminator: Output ≤ 30 mW, Beam Divergence SPOT ≥30 MRAD, FLOOD ≥105 MRAD
This is a dual-laser rail-mounted sight designed for AR-15 platforms and similar systems.
