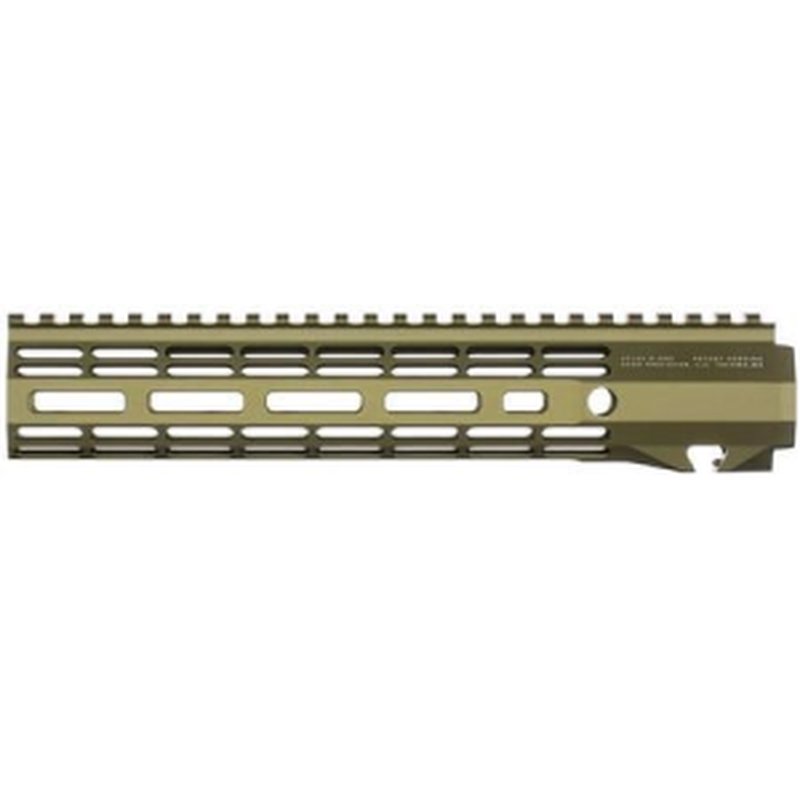

Aero Precision Inc AR-15 10.3In ATLAS-ONE M-LOK Free Float Handguard

The ATLAS R-ONE is the newest addition to the Aero Precision handguard lineup. Machined from 6061-T6 aluminum, the R-ONE handguards are engineered for minimal size and weight while providing a rigid, dependable mounting platform for lightweight builds. Aero Precision’s proprietary ATLAS attachment system maintains a slim profile while delivering the strength and stability customers expect.

The Aero Taper Lock Attachment System (ATLAS) features two mirrored tapered locking nuts that provide evenly distributed clamping pressure across a custom-engineered barrel nut using a turnbuckle screw. A ratcheting detent further secures the design and provides positive registration during installation. The even clamping pressure helps avoid handguard distortion commonly seen with other systems.

All mounting hardware is included with each ATLAS handguard. Lightweight by design.

Features

• Full top Picatinny rail for optional attachments
• Quick-disconnect sling sockets at the 3, 6 and 9 o’clock positions
• Compatible with low-profile gas blocks
• 1.3" inside diameter
• 1.5" outside diameter
• Compatible with mil-spec AR-15 upper receivers and barrels
• Designed to match M4E1 threaded upper receivers; may not fit some billet uppers due to indexing tabs

Weights

• M-LOK handguard weights:
  • 7" — 5.22 oz
  • 9" — 6.03 oz
  • 12" — 8.00 oz
  • 15" — 9.07 oz
• Mounting hardware weight — 4.72 oz (same across all ATLAS handguard options)

Restricted Part: Please check your state regulations for ownership of restricted parts — documentation may be required.

Product Specifications

• Handguard Style: M-LOK
• Color: O.D. Green
• Item Length (in): 10.300
• Make / Model Fit: AR-15, Universal
• Finish: Anodized
• Material: Aircraft Aluminum (6061-T6)
• Item Weight (lbs): 0.379
• Quantity: 1
