Superlative Arms Adjustable Piston System 0.750" Gas Block (Left Hand) for AR-15

Overview

The Superlative Arms patent pending “Bleed Off” adjustable piston gas block for the AR-15 platform adjusts gas flow by bleeding gas out of the block instead of restricting flow like conventional adjustable blocks.

Key results

• Reduces the pressure used in the block to only what is required to drive the bolt carrier; remaining gas/pressure is bled out for a cleaner, cooler-running system
• Reduction of felt recoil
• Patented adjustment detent located outside of the block (no contamination)
• Gas adjustment screw does not restrict gas flow; reduces risk of erosion/seizing and detent loss due to carbon build-up
• Screw is removable, with a safety mechanism to prevent unintentionally backing the screw all the way out
• For SBRs and/or suppressors, the bleed-off port exhausts excessive pressure out of the block to reduce blowback

Not rated for 300 Blackout in pistol length.

Gas block specifications (for the 0.750" system)

• Firearm Type: AR-15
• Gas Length options: Pistol, Carbine, Mid-Length, Rifle
• Weight: 12.8 oz (Pistol), 13.1 oz (Carbine), 13.4 oz (Mid-Length), 13.8 oz (Rifle)
• Piston Block Attachment Type: Clamp On, Socket Head Cap Screws
• Piston Block Material and Finish: 416 SS, Melonite
• Carrier: Ion Bonded, 1 pc. Carrier w/ Skis and Dimpled Key
• Gas Adjustment: 30 locked positions (front of block)
• Bleed Off Port: front of block

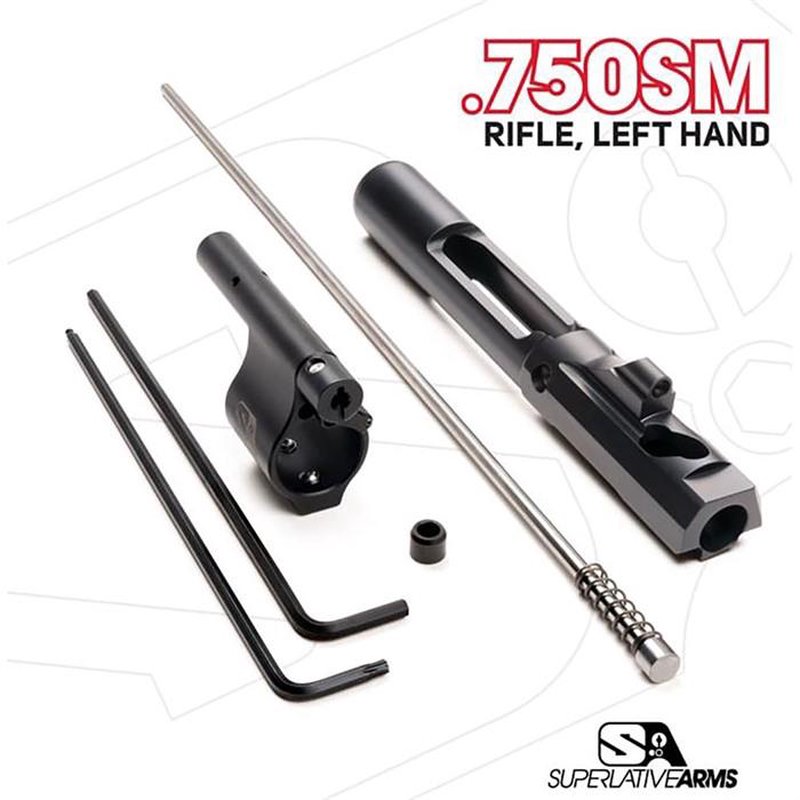

Included

• Piston Block Assembly
• Carrier (bolt not included)
• (1) 3/32" x 6" Hex key (tool to adjust gas screw)
• (1) 9/64" x 6" Hex key (tool to install/remove gas block plug)
• (1) Bushing and insert tool
• Installation instructions and QR code for video tutorial
