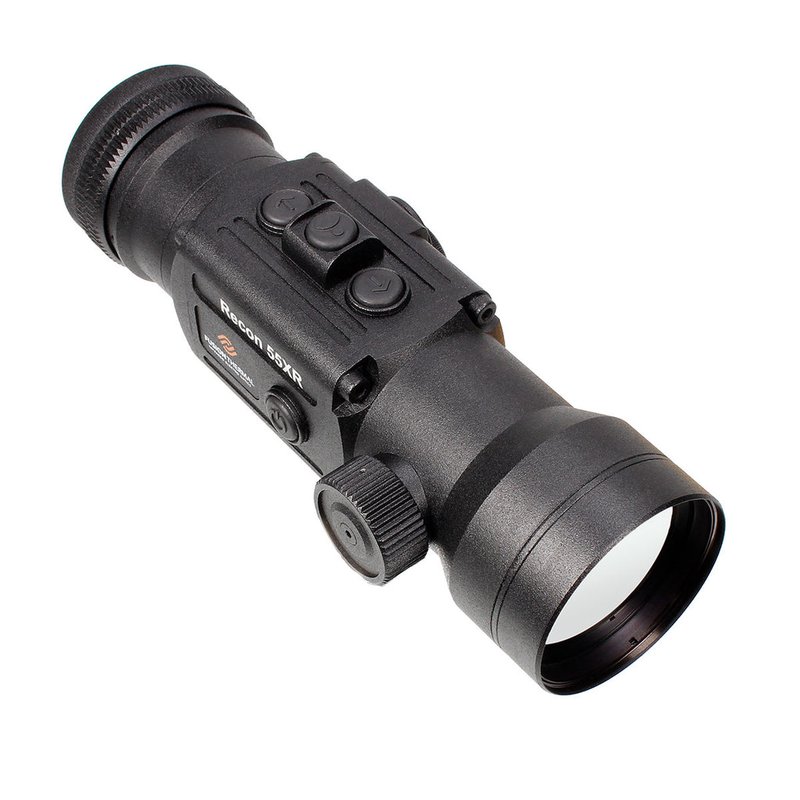

Fusion Thermal Recon 55XR-LH Left-Hand Thermal Clip-On Day Scope Converter

Overview

Fusion Thermal Recon 55XR is a thermal clip-on designed to convert a day scope into a thermal viewing system. This LH (left-hand) variant is intended for left-handed shooters and differs by the location of the target focus knob (side of the lens housing).

Key idea: Recon 55XR addresses clip-on limitations by using the MORE (Magnification Optimizing Range Enhancement) optical system to improve usable magnification when paired with day scopes.

Features

• LH Lefty Variant – Focus knob located for left-handed usability
• MORE – Magnification Optimizing Range Enhancement optical system
• T3 – Three-button control system with center tower
• KISS – Simplified operating menu
• WAVE12 – 640×512 (12 micron) uncooled thermal sensor
• Arclight – 55mm ultra HD objective lens
• XGEN – Next generation armor housing
• Micro Click Focus – fast click-by-click precision focus
• Detection range: up to 2600 yards
• Start-up time: ~6 seconds (cold start described as 5 seconds to functional use)
• Monocular mode for handheld viewing applications
• 5-year transferable warranty
• Made in the European Union

Technical Specs (from listing)

• Thermal sensor: 640×512, VOx Uncooled (WAVE12)
• Sensor pixel size: 12 micron
• Objective lens diameter: 55 mm (Arclight)
• Frame refresh rate: 50 Hz
• Clip-on base magnification: 1X (no digital magnification in clip-on mode)
• Monocular base magnification: 1X
• Monocular digital magnification: 2x & 4x (2-step)
• Display: Super HD OLED RGBW / 3.2 million dots
• Color palette modes: 4 (white hot, black hot, red hot, rainbow)
• Multiple gun profiles: Yes (save up to 5 different zeros)
• Detection range: Up to 2600 yards
• Cold start / functional use: 5 seconds (logo appearance to functional use)
• Power saver mode start: Instant (button press)
• Auto shutdown battery saver: Yes (user selectable)
• On-board video record: No (external recording possible)
• Video output: Yes, via USB-C
• Wi-Fi equipped: No
• Battery: CR123A 3V batteries or 3.7V rechargeable (2x)
• Expected battery life: 3 hours (typical operation)
• External power supply: Yes (via USB-C)
• Recoil rating: 300 Win Mag
• Nitrogen purged: Yes
• Waterproof rating: IP67
• Front lens housing outside diameter: 59.1 mm
• Clip-on adapter ring threading: M52x.075 male
• Length: 7.75 in (housing front to housing back)
• Weight: 19.7 oz (without batteries or lens covers)
