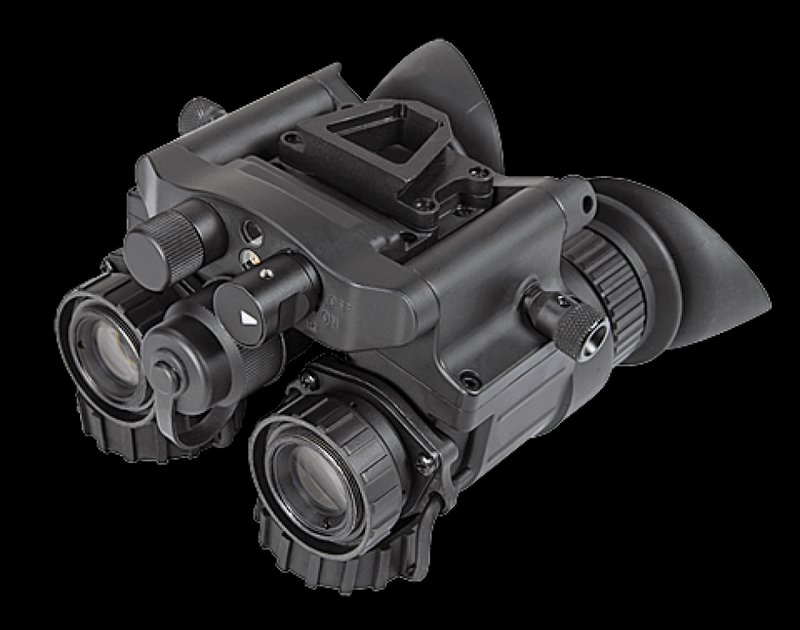

AGM NVG-50 NW1 Dual-Channel Night Vision System

Overview

AGM NVG-50 NW1 is a dual-channel night vision system featuring a wide 51° field of view and compact composite housing for durability. It uses multi-coated optics and supports installation with Gen 2+ or Gen 3 image intensifier tubes.

Key Features

• Redundant dual-tube design
• True stereoscopic vision
• Wide 51° field of view (with shorter eye relief)
• Lightweight and compact; head/helmet mountable for hands-free operation
• Bright light cut-off feature
• Manual Gain Control (adjusts image brightness)
• Built-in infrared (IR) illuminator and flood lens
• Low battery / IR on / excessive light indicators
• Automatic shut-off system
• Powered by one CR123A (3V) or AA (1.5V) battery
• 3-year warranty

Specs (Highlights)

• Image intensifier tube: Gen 2 "White Phosphor Level 1"
• Resolution: 51–64 lp/mm
• Magnification: 1x (3x optional)
• Lens system: 19 mm; F/1.26
• FOV: 51°
• Focus range: 0.25 m to infinity
• Eye relief: 17 mm
• Diopter adjustment: -6 to +2 dpt
• Infrared illuminator: Yes
• Manual Gain Control: Yes
• Battery life (operating): up to 20 hours (up to 80 hours with optional battery pack)
• Operating temperature: -40°C to +50°C
• Storage temperature: -50°C to +50°C
• Weight: 615 g (1.35 lbs)
• Overall dimensions: 112 × 118 × 74 mm

Included / Interface Shoes

• NVG Interface Shoe (preinstalled): standard dovetail headset/helmet mounts
• Bayonet/Horn Interface Shoe (included): standard bayonet/horn headset/helmet mounts
• Mini-Rail Interface Shoe (included): mini-rail interface mounts

Mount Compatibility (Examples)

• AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, AN/PVS-18
• Mini-rail interface mounts
