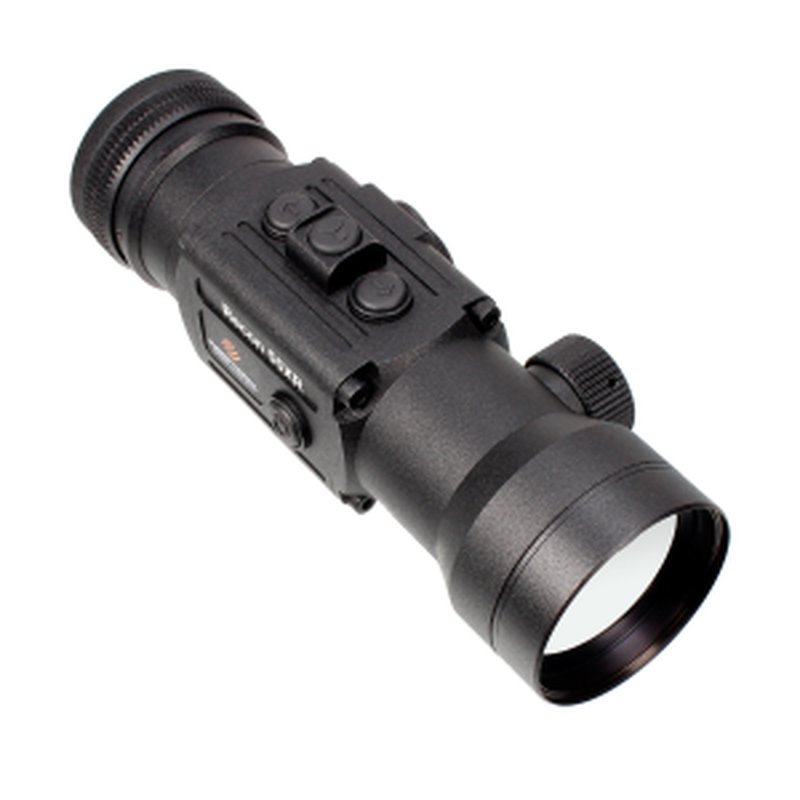

Fusion Thermal Recon 55XR Thermal Clip-On Day Scope Converter TC605

Fusion Thermal Recon 55XR Thermal Clip-On (Day Scope Converter) TC605

Thermal clip-on that converts a day scope for thermal use, including Monocular Mode for handheld viewing.

Key technologies / features

• MORE (Magnification Optimizing Range Enhancement) optical system
• T3 three-button control system with center tower
• KISS simplified operating menu
• WAVE12 thermal sensor: 640×512 VOx uncooled, 12 micron
• Arclight thermal objective lens: 55 mm
• XGEN armored housing
• Micro Click Focus fast click-by-click precision focus
• Detection range: up to 2600 yards
• Fast start-up: 5 seconds to functional use
• Monocular Mode with digital zoom capable
• 5-year transferable warranty
• Made in the European Union

Clip-on / monocular magnification

• Clip-on base level magnification: 1X (no digital magnification)
• Clip-on digital magnification: none
• Monocular base level magnification: 1X (no digital magnification)
• Monocular digital magnification: 2x and 4x (2-step digital zoom)
• Field of view (base level): 460 at 1000 yards

Display / recording

• Display: Super HD OLED RGBW / 3.2 million dots
• Color palette modes: 4 (white hot, black hot, red hot, rainbow)
• On-board video record: no (external recording possible)
• Video output: yes via USB-C
• WiFi: no

Power

• Battery type: CR123A 3V batteries or 3.7V rechargeable (2x)
• Expected battery life: 3 hours typical (continuous operation stated: 3.5 hours)
• External power capable: yes via USB-C

Durability / environmental

• Recoil rating: 300 Win Mag
• Nitrogen purged: Yes
• IP rating: 67 (dust/sand protected; tested to work at least 30 minutes under 1M of water)

Mounting / physical

• Front lens housing outside diameter: 59.1 mm
• Clip-on adapter ring threading: M52×0.075 male (Rusan ARM52 style)
• Length: 7.75 in (housing front to housing back)
• Weight: 19.7 oz (without batteries or lens covers)

Multiple gun profiles

• Saves up to 5 different zeros (gun profiles G1–G5) for POI correction memory.
